Elevation of a part of the 110 kV substation r00

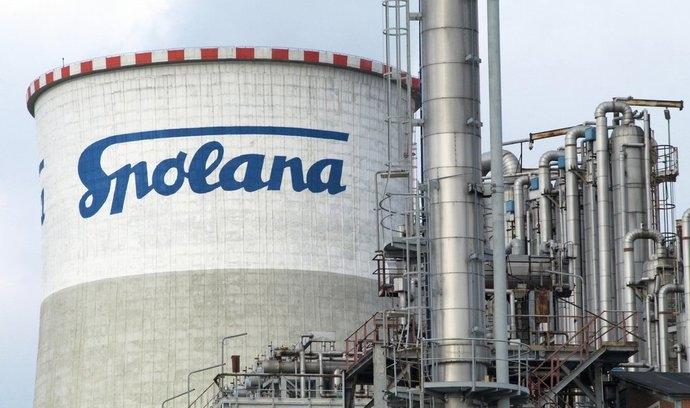

In early 2017, our company entered into a contract with Spolana, a. s., for implementation of the work "Elevation of a part of the 110 kV substation r00" on the premises of Spolana Neratovice a.s.

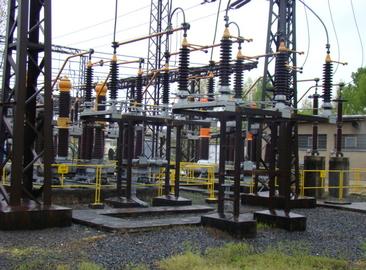

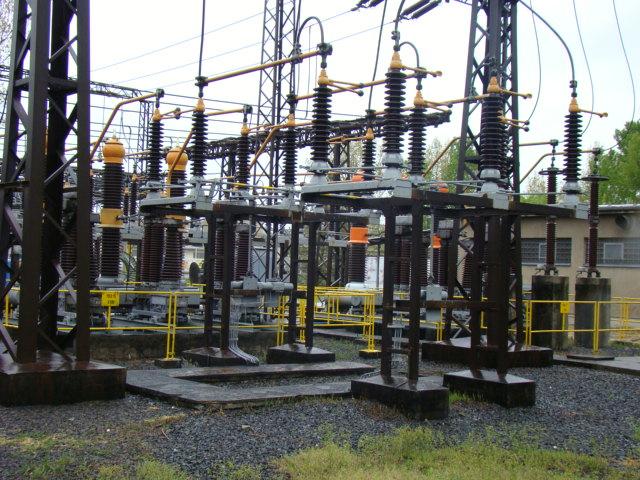

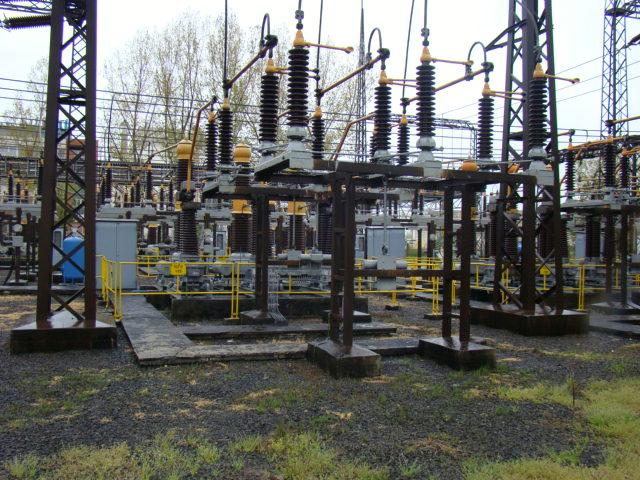

The reason for this investment is the fact that in the last few years outdoor substation r00, which powers the entire Spolana Neratovice plant, has been affected by floods and was flooded up to the height of 2.4 meters (2002 and 2012).
The subject of work is ensuring flood control measures in the 110 kV substation r00, which is operated by Spolana, so that in case the premises of the substation r00 are flooded, it would be possible to turn on and put at least one outlet in r00 array no. 4 r00 to power the T108 transformer in Spolana into operation immediately after the water level drops. This also requires the provision of a feeder line, namely V918 in r00 array no.3. During implementation of these measures the existing obsolete EHV devices and the equipment pertaining to those arrays will be replaced with new devices.
The scope of work begins with processing the project documentation, supply of EHV equipment, and ensuring building and construction works, including installation. Implementation of the contract will take place in the 2nd and 3rd quarters of 2017.
